Does a Laser Engraver Need Ventilation: Complete Guide

Laser engraving is an exciting and versatile craft, but it comes with its own set of safety and operational considerations. One critical aspect is ventilation. If you’re wondering whether your laser engraver needs proper ventilation, the answer is a resounding yes.

---

---

This guide will explain why ventilation is crucial, how to set up an effective system, and the consequences of poor air management.

Why Does a Laser Engraver Need Ventilation?

Toxic Fumes

Laser engraving involves burning or vaporizing materials, such as wood, acrylic, leather, or metal. This process can release harmful fumes and particles that may include:

• Volatile organic compounds (VOCs): From plastics, paints, and coatings.
• Fine particulate matter: From wood and other natural materials.
• Toxic gases: Specific to certain materials, like chlorine gas from PVC.

Odor Control

Materials like leather and acrylic produce strong, unpleasant odors when engraved. Proper ventilation eliminates these smells, ensuring a comfortable working environment.

Machine Performance

A build-up of smoke and debris inside the engraving area can obstruct the laser beam, reducing the quality of your engravings. Ventilation helps maintain clean airflow around the laser.

Compliance with Regulations

In many locations, ventilation is a legal requirement to ensure workplace safety. Failure to meet these standards could result in fines or operational restrictions.

Types of Ventilation Systems for Laser Engravers

Exhaust Ventilation

• How It Works: Uses a fan and ducting to expel fumes outside.
• Best For: Dedicated workshop spaces.
• Key Considerations: Ensure the exhaust leads far enough from doors, windows, and neighboring properties.

Key Components of an Exhaust Ventilation System

1. Inline Fan
   • The core of the system, responsible for moving air through the ducts.
   • Look for fans with a high CFM (Cubic Feet per Minute) rating to handle the air volume generated by your laser engraver.
2. Ducting
   • Typically made of flexible metal or durable PVC tubing, ducting transports air from the laser engraver to the outdoors.
   • Ducts should be:
     • Airtight to prevent leaks.
     • Resistant to heat and chemicals.

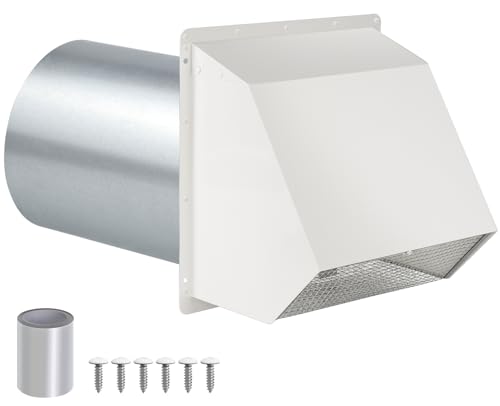

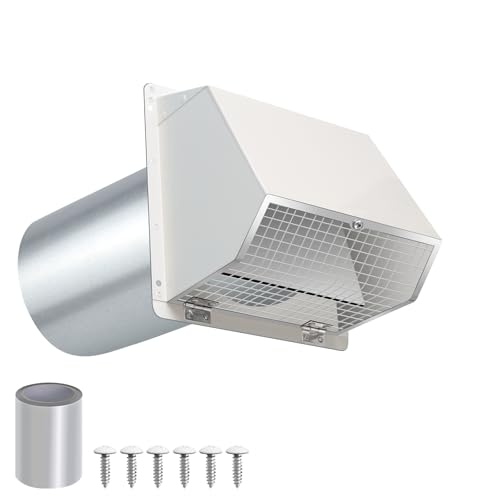

3. Vent Cap
   • Positioned at the exterior outlet of the ducting, a vent cap prevents backflow, rain, or debris from entering the system.
4. Hose Connectors
   • Ensure secure and airtight connections between the laser engraver and ducting.

Benefits of Exhaust Ventilation

1. Efficient Fume Removal
   • Directly removes smoke, dust, and harmful gases, ensuring a clean and breathable workspace.
2. Improved Laser Performance
   • Keeps the engraving area clear of smoke, which could obstruct the laser beam and compromise precision.
3. Cost-Effective
   • Unlike air filtration units, an exhaust system does not require regular filter replacements, making it a long-term cost-effective solution.
4. Compliance with Safety Standards
   • Meets safety and environmental regulations in many regions.

Setting Up Exhaust Ventilation

Placement

• Position the laser engraver near an exterior wall or window to minimize duct length.
• Keep the setup compact to reduce air resistance.

Installing the Fan

• Mount the inline fan securely to minimize vibrations.
• Choose a fan with sufficient power to handle the size and output of your engraver. A typical laser engraver requires a fan rated at 200-400 CFM.

Routing Ducting

• Use smooth and straight ducting wherever possible to reduce airflow resistance.
• Avoid sharp bends, which can decrease efficiency.
• Secure all duct connections with clamps or adhesive to ensure airtightness.

Exterior Vent

• Install the vent cap securely to prevent backdraft and entry of external debris.
• Place the vent far from windows, doors, or neighboring properties to avoid smoke re-entry.

Maintenance Tips for Exhaust Ventilation

1. Regular Cleaning
   • Clean ducts and the fan regularly to prevent debris buildup, which can reduce airflow.
2. Inspect Connections
   • Check all joints and connections for leaks and reseal if necessary.
3. Replace Worn Parts
   • Over time, ducting or fans may degrade. Replace any damaged components promptly.

When to Choose Exhaust Ventilation

Exhaust ventilation is ideal if:

• You have a dedicated workshop space with an exterior wall or window for venting.
• You work with materials that produce high amounts of smoke and fumes, such as wood, acrylic, or leather.
• You want a permanent, low-maintenance solution for laser engraver ventilation.

Top 5 Laser Engraver Exhaust Fan Options: Best Quality!

Air Filtration Units

• How It Works: Filters fumes and particles through HEPA and activated carbon filters, then recirculates clean air.
• Best For: Indoor setups without the option to vent outdoors.
• Key Considerations: Filters need regular replacement to remain effective.

Key Components of a Filtration Unit

1. Pre-Filter
   • Captures larger particles such as dust and debris.
   • Protects the primary filters from clogging, extending their lifespan.
2. HEPA Filter
   • Removes fine particles, including smoke, with an efficiency of up to 99.97% for particles 0.3 microns or larger.
   • Essential for ensuring clean, breathable air.
3. Activated Carbon Filter
   • Absorbs harmful gases, volatile organic compounds (VOCs), and odors produced during engraving.
   • Ideal for materials like acrylic, wood, and plastics, which emit strong fumes.
4. Fan System
   • Draws air through the filters and recirculates it back into the workspace.
   • Fans should provide adequate airflow to match the laser engraver’s output.
5. Housing
   • A sturdy, airtight casing that contains the filters and fan system, preventing leaks.

Advantages of Filtration Units

1. Portable and Easy to Install
   • No external ducting is required, allowing easy setup and mobility between workspaces.
2. Indoor Use
   • Perfect for environments where external venting isn’t possible, such as apartments or shared buildings.
3. Multi-Layer Filtration
   • Ensures efficient removal of particles, fumes, and odors, offering comprehensive air purification.
4. Compliance
   • Meets health and safety regulations, especially for commercial or educational spaces.
5. Quiet Operation
   • Many units are designed to operate quietly, making them suitable for noise-sensitive environments.

Choosing the Right Filtration Unit

When selecting a fume extractor for your laser engraver, consider the following factors:

Airflow Capacity

• Measured in Cubic Feet per Minute (CFM), the unit should match the engraving machine’s airflow requirements.
• For small diode lasers, 100-200 CFM may suffice. Larger CO2 or fiber lasers may need 300-500 CFM.

Filter Life

• Check the expected lifespan of the filters and the cost of replacements.
• Some units have washable pre-filters, reducing long-term costs.

Material Compatibility

• Ensure the unit can handle fumes and particles specific to the materials you engrave, such as wood, acrylic, or metals.

Size and Portability

• Compact units are ideal for tight workspaces or portability between locations.

Noise Level

• Look for units with low noise output, especially if working in shared spaces.

Budget

• While high-end units offer better filtration and longevity, there are affordable options for hobbyists or occasional use.

Maintenance of Filtration Units

1. Filter Replacement
   • Replace pre-filters and HEPA filters as recommended by the manufacturer.
   • Activated carbon filters should be replaced more frequently when engraving materials that emit strong fumes.
2. Regular Cleaning
   • Clean the housing and pre-filters to maintain optimal airflow.
3. Monitor Airflow
   • Reduced airflow may indicate clogged filters, requiring replacement or cleaning.
4. Inspect Components
   • Periodically check for leaks or damage to the unit’s housing and seals.

When to Choose a Filtration Unit

Filtration units are ideal if:

• You work in a space where outdoor venting is not an option.
• You need a portable and self-contained solution.
• You engrave materials that produce fumes and odors, such as acrylic, leather, or plastics.
• You prioritize air quality in shared or enclosed spaces.

Best Fume Extractors for Laser Engravers: 3 Quality Options!

Combination Systems

• Some setups combine exhaust ventilation and filtration to maximize safety and odor control.

How Combination Systems Work

1. Air Collection via Exhaust Ventilation
   • The system first captures fumes and particles from the laser engraver using an exhaust fan.
   • Ductwork channels the air to a filtration unit or directly outside, depending on the configuration.
2. Filtration Process
   • Before the air is released, it passes through multi-stage filters to remove fine particles, toxic gases, and odors. This ensures compliance with air quality standards.
3. Exhaust to the Outdoors or Recirculation
   • If external venting is possible, clean air is expelled outdoors.
   • If external venting is not feasible, the filtered air is recirculated back into the workspace.

Advantages of Combination Systems

1. Enhanced Air Quality
   • Removes a wider range of contaminants, including ultra-fine particles and volatile organic compounds (VOCs).
2. Odor Control
   • Filtration units with activated carbon effectively neutralize strong odors before air is exhausted outdoors or recirculated.
3. Compliance with Regulations
   • Meets strict environmental and workplace safety standards, especially in commercial or educational settings.
4. Adaptability
   • Suitable for various environments, whether you can vent outdoors or need to recirculate filtered air indoors.
5. Energy Efficiency
   • Filtering and recirculating air can reduce heating and cooling costs, particularly in climate-controlled spaces.

Components of Combination Systems

1. Exhaust Ventilation
   • High-powered exhaust fans or blowers to extract air efficiently.
   • Flexible or rigid ducting to direct airflow to the filtration unit or outdoor vent.
2. Filtration Unit
   • Pre-Filter: Captures larger particles and extends the life of other filters.
   • HEPA Filter: Removes fine particles, ensuring clean air.
   • Activated Carbon Filter: Absorbs odors and VOCs, essential for materials like leather, acrylic, and plastics.
3. Control Mechanisms
   • Adjustable airflow and pressure settings to optimize performance based on the engraving material and laser type.
4. Ducting and Ports
   • Connects the laser engraver to both the filtration unit and the exhaust outlet.

When to Use a Combination System

Combination systems are ideal if:

• You Work with a Variety of Materials: Some materials emit both fine particles and strong odors that require dual treatment.
• You Operate in Shared Spaces: Minimizing fumes and odors is critical for comfort and safety in multi-user environments.
• You Need Maximum Safety: Combining filtration and outdoor venting ensures even the smallest contaminants are removed.
• Regulations Demand It: In certain commercial or industrial settings, compliance with strict air quality standards may require a dual approach.

Challenges of Combination Systems

1. Initial Setup Cost
   • Higher upfront cost due to the need for both ventilation and filtration equipment.
2. Space Requirements
   • Additional space may be needed to accommodate ducting, fans, and filtration units.
3. Maintenance
   • Both the ventilation and filtration components require regular upkeep to ensure optimal performance.
4. Complex Installation
   • Installing ductwork and integrating both systems may require professional assistance.

Example Applications

• Professional Workshops: Combination systems ensure high air quality and odor control in busy engraving environments.
• Educational Institutions: Protects students and staff by eliminating exposure to harmful fumes.
• Home Studios: Offers a practical solution for hobbyists working in enclosed spaces.

Tips for Setting Up a Combination System

1. Match Capacity
   • Ensure the exhaust fan and filtration unit are powerful enough for your laser engraver’s output.
2. Optimize Ducting
   • Minimize bends and use the shortest possible duct length to reduce airflow resistance.
3. Choose the Right Filters
   • Select filters compatible with the materials you engrave (e.g., carbon filters for odor-heavy projects).
4. Ensure Proper Sealing
   • Use airtight connections to prevent leaks in the system.
5. Monitor Air Quality
   • Use air quality sensors to ensure your system is performing effectively.

Comparison Table: Exhaust Ventilation, Air Filtration Units, and Combination Systems

Feature/Aspect	Exhaust Ventilation	Air Filtration Units	Combination Systems
Primary Function	Removes air contaminants by venting outdoors.	Filters contaminants and recirculates air indoors.	Combines venting and filtration for maximum safety and odor control.
Best Use Case	Situations with access to an outdoor venting area.	Spaces where outdoor venting isn’t feasible.	High-demand environments requiring comprehensive air quality control.
Setup Requirements	Ductwork, exhaust fan, and outdoor venting access.	Standalone unit; no outdoor access needed.	Ductwork, exhaust fan, filtration unit, and optional recirculation setup.
Odor Control	Moderate (depends on venting efficiency).	High (activated carbon filters remove odors).	Very High (dual processes ensure effective odor removal).
Airborne Particle Removal	Moderate to High (depends on fan power).	High (HEPA filters remove fine particles).	Very High (filters combined with venting provide superior performance).
Ease of Installation	Moderate (requires ductwork and vent access).	Easy (plug-and-play, portable units).	Complex (requires integration of ducting and filters).
Initial Cost	Low to Moderate.	Moderate to High.	High (dual systems are more expensive).
Operating Cost	Low (minimal maintenance).	Moderate (filter replacements required).	High (maintenance of both ducting and filters).
Space Requirements	Requires space for ducting and outdoor access.	Compact; portable units save space.	Requires significant space for ducting and filtration unit.
Energy Efficiency	High (uses natural airflow if designed well).	Moderate (requires power for filters and fans).	Moderate to Low (dual components increase power usage).
Regulatory Compliance	May meet basic air quality regulations.	Typically compliant for indoor air quality.	Fully compliant with most strict air quality standards.
Examples of Use	Workshops with outdoor access, industrial settings.	Home studios, schools, shared indoor spaces.	Professional workshops, institutions, and areas requiring top safety.

Key Takeaways:

• Exhaust Ventilation: Best for spaces with outdoor venting capabilities. Affordable but less effective for odor and particle removal compared to filtration.
• Air Filtration Units: Ideal for indoor spaces without outdoor venting options. Portable and efficient for odor and particle control.
• Combination Systems: The most comprehensive solution for safety and air quality, combining the strengths of both systems. Best for professional or high-demand settings.

Setting Up a Ventilation System

1. Choose a Ventilation Type Decide between outdoor exhaust or an air filtration system based on your workspace.
2. Select Compatible Equipment Look for inline fans, ducting, or filtration units designed for your laser engraver’s specifications.
3. Proper Installation Ensure airtight duct connections and place filtration units near the engraver. Use durable materials for ducts to withstand heat and chemicals.
4. Maintenance
   • Clean ducts regularly to prevent clogs.
   • Replace filters as recommended by the manufacturer.

What Happens Without Ventilation?

• Health Risks: Prolonged exposure to toxic fumes can lead to respiratory problems, skin irritation, or more severe health issues.
• Damaged Equipment: Residue buildup can cause overheating or damage to your laser engraver.
• Poor Results: Engraving quality may decline due to smoke interfering with the laser beam.
• Unpleasant Environment: Fumes and odors can make your workspace uncomfortable and unwelcoming.

Tips for Effective Ventilation

• Use a fan with high CFM (cubic feet per minute) to move air efficiently.
• Ensure airtight ducting to prevent leaks.
• Position your exhaust or filtration system to minimize smoke and debris accumulation inside the laser area.

How to Set Up a Laser Engraver Exhaust Vent to the Outdoors Using a Window Dryer Vent

Setting up an exhaust vent for your laser engraver is crucial to remove smoke, fumes, and odors generated during engraving. A window dryer vent is a simple and cost-effective solution to direct these emissions outdoors, especially if you don’t have a permanent venting system. This guide walks you through the steps to set up a laser engraver exhaust vent using a window dryer vent.

Tools and Materials You’ll Need

1. Laser engraver with an exhaust fan
2. Flexible dryer vent duct (typically 4 inches in diameter) Available On Amazon

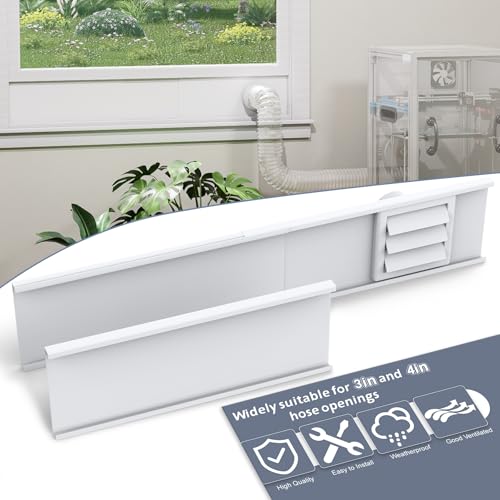

3. Window dryer vent kit available on Amazon
4. Hose clamps (included with vent duct above)
5. Screwdriver

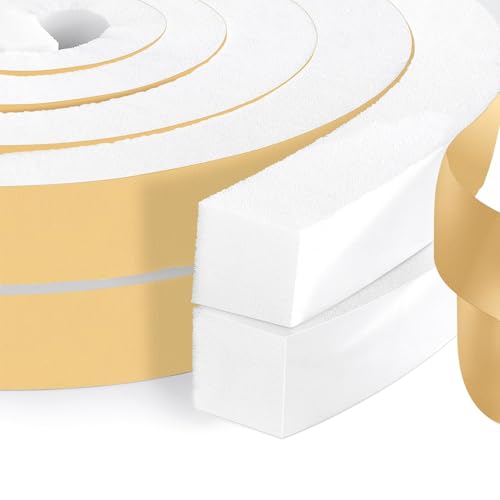

6. Weatherstripping or foam seal (optional, for improved sealing)
7. Tape measure

Step-by-Step Setup Guide

Step 1: Choose the Right Location

• Place your laser engraver near a window to minimize the length of the duct.
• Ensure the chosen window can accommodate the dryer vent kit and is easily accessible.

Step 2: Install the Window Dryer Vent Kit

1. Purchase a window dryer vent kit that matches your window type (sliding or double-hung windows).
2. Measure the width of your window to adjust the vent panel accordingly.
3. Insert the vent panel into the open window and close the window securely to hold it in place.
4. If there are gaps around the vent, use weatherstripping or foam seals to block air leaks.

Step 3: Connect the Flexible Dryer Vent Duct to the Laser Engraver

1. Attach one end of the flexible dryer vent duct to the exhaust port of your laser engraver.
2. Secure the connection using a hose clamp to prevent leaks.
3. Tighten the clamp with a screwdriver.

Step 4: Connect the Duct to the Window Vent

1. Attach the other end of the duct to the vent opening on the window kit.
2. Use a hose clamp to secure this connection tightly.

Step 5: Test the Setup

• Turn on your laser engraver and its exhaust fan.
• Check for leaks at all connection points and ensure smoke or fumes are effectively vented outdoors.
• Adjust clamps or seals if necessary.

Additional Tips for Optimal Performance

1. Minimize Duct Length: Keep the duct as short and straight as possible to improve airflow efficiency.
2. Use a Booster Fan: For longer ducts, consider installing an inline booster fan to enhance ventilation.
3. Clean Regularly: Periodically check and clean the duct to prevent buildup of debris or residue.
4. Secure the Duct: Use zip ties or brackets to prevent the duct from shifting during use.

Advantages of a Window Dryer Vent Setup

• Cost-Effective: Window dryer vent kits are affordable and easy to find.
• Non-Permanent: Ideal for renters or temporary setups, as no structural modifications are needed.
• Efficient: Directs smoke and fumes outdoors, improving indoor air quality.

By following these steps, you can efficiently vent your laser engraver exhaust outdoors, ensuring a safer and more pleasant workspace. With proper setup and maintenance, this solution provides excellent results for hobbyists and professionals alike.

How to Vent a Diode Laser (Using a Laser Enclosure and Exhaust Fan)

Venting a diode laser is crucial to ensure a safe, clean, and odor-free environment during engraving or cutting. While open-frame diode lasers are convenient and cost-effective, they produce fumes and particulates that require proper ventilation.

Setting up a laser enclosure with an exhaust fan is an effective way to manage these emissions. Here’s a step-by-step guide to help you set up a venting system for your open diode laser.

Why Venting is Important for Diode Lasers

Diode lasers, like other laser types, release fumes and particles when engraving or cutting materials like wood, acrylic, or leather. These emissions can contain harmful chemicals and odors that may affect indoor air quality. Proper ventilation:

• Reduces exposure to toxic fumes.
• Prevents smoke buildup, which can impact engraving quality.
• Keeps the work environment safe and comfortable.

Step 1: Choosing or Building a Laser Enclosure

An enclosure is essential to contain fumes and direct them toward the exhaust system.

1. Pre-Made Enclosures:
   • Purchase a laser enclosure specifically designed for your diode laser model. These enclosures are often equipped with ports for ventilation.
2. DIY Enclosures:
   • Build a custom enclosure using heat-resistant and airtight materials like wood, acrylic, or metal.
   • Ensure it has a door or lid for easy access and a seal to prevent fume leaks.
3. Size and Fit:
   • The enclosure should fit your diode laser with enough room to access the laser and your material easily.

Laser Engraver Enclosure Options: You Need The Best Quality

Step 2: Installing an Exhaust Fan

The exhaust fan is responsible for drawing fumes out of the enclosure and venting them outdoors.

1. Fan Type:
   • Use an inline duct fan or blower fan with a capacity of at least 100 CFM (cubic feet per minute) to handle typical diode laser fumes.
2. Placement:
   • Install the fan at the exhaust port of the enclosure.
   • Position it to pull air efficiently through the enclosure and out the vent.
3. Power Source:
   • Connect the exhaust fan to a power outlet, and consider adding a switch for easy operation.

Top 5 Laser Engraver Exhaust Fan Options: Best Quality!

Step 3: Setting Up Ventilation to the Outdoors

Direct fumes outdoors for effective air quality control.

1. Ducting Material:
   • Use flexible aluminum or PVC ducting to connect the exhaust fan to a window or wall vent.
2. Window Dryer Vent:
   • Install a window dryer vent kit. These kits include a flange and cover to secure the duct to the window while preventing outdoor air from entering.
3. Sealing:
   • Ensure all duct connections are sealed with aluminum tape to prevent leaks.
   • Use weather stripping around the window vent for an airtight fit.

Step 4: Testing the Setup

Before operating your laser, test the ventilation system to ensure it works effectively.

1. Smoke Test:
   • Place a small incense stick or a piece of paper inside the enclosure and light it.
   • Observe whether the smoke is drawn efficiently through the exhaust fan and ducting.
2. Adjustments:
   • Check for leaks or weak airflow and fix them by tightening seals or upgrading the fan.

Additional Tips for Venting an Open Diode Laser

1. Air Filtration:
   • Add a carbon filter to the exhaust system to trap odors and small particles.
2. Regular Maintenance:
   • Clean the enclosure and fan regularly to remove debris and ensure optimal airflow.
3. Proper Placement:
   • Place the laser in a well-ventilated area to further reduce fume accumulation.

Venting an open diode laser is vital for safety and efficiency, and using a laser enclosure with an exhaust fan is the most effective method. By following this guide, you can create a clean and secure working environment, ensuring the best results for your laser projects. Proper ventilation not only protects your health but also enhances the performance of your diode laser.

Frequently Asked Questions

Final Thoughts

Ventilation is not just an optional extra for laser engraving—it’s essential for your safety, health, and the performance of your machine. Whether you opt for an outdoor exhaust or a high-quality filtration unit, investing in proper ventilation ensures a safe and enjoyable engraving experience.

Make your workspace safe, clean, and compliant with the best practices outlined in this guide, and engrave with confidence!
